    CNP4100A

    Camnex 2GE ONU WiFi Voice Mode

    wifi voice mode

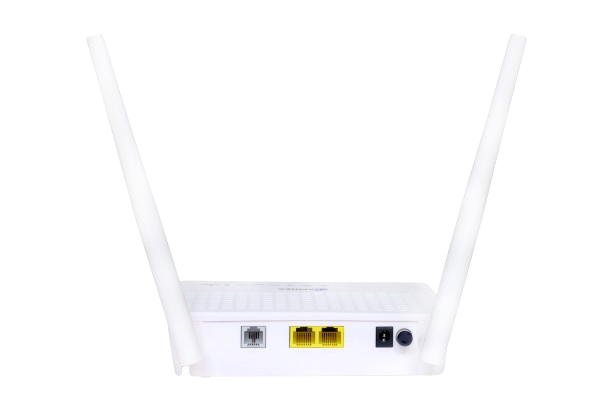

    04-removebg-preview
    05-removebg-preview

    Key Features :-

    Here are the key features of the Camnex 2GE ONU WiFi Voice Mode :

    • 2x GE + 1x FXS (voice) supported
    • Supports XPON dual-mode (EPON/GPON) technology.
    • Dual-band Wi-Fi supported (802.11b,g,n,a,ac)
    • OAM/OMCI protocol support for easy configuration and management
    • Extend the Wi-Fi range by connecting a secondary device
    • LED indicators for link & activity
    • Multiple SSID support
    • High optical sensitivity
    • Stable connection
    •  Parental control support
    •  Support IPV4, IPV6, PPPoE, DHCP and Static IP configuration for WAN Interface
    • Support IP, MAC filtering, Firewall Functionality in routed mode

    Network Camera

    Network Video Recoder

    Wi Fi Routers







    Hardware Features for Camnex 2GE ONU WiFi Voice Mode

    Features / hardwareDetail
    ETH LAN2 *10/100/1000
    PON Port quantity1
    FXS1
    Reset ButtonYES
    Power ButtonYES
    Power SupplyYES
    IEEE 802.11 ac/b/g/n supportYES
    Wi-Fi 2.4 GHzYES
    Wi-Fi 5 GHzYES
    ChipsetRTL9607
    Chipset
    Wireless（2.4G)    		RTL8192
    Chipset Wireless（5G）RTL8812
    Antenna2*5DBI
    Wifi- band2.4G: 2.400GHz~2.4835GHz 5G:
    5.150~5.725GHz
    SSID SupportYES
    Chipsetna
    Flash128MB
    RAM256MB
    Firmware VersionV4.0.0--E231008
    Vlan SupportYES
    TR069 SupportYES
    NAT supportYES
    DMZ supportYES
    Optical receiver sensitivity-27dbm
    Output optical powerEPON--1 TO 4;GPON--0 TO 5DBM
    PON connector TypeSC/PC
    EPON SupportYES
    GPON SupportYES
    MAX Speed on LAN1000MBPS
    MAX Speed on WIFIUp To 600
    IPV4/IPV6 Dual Stack SupportYES

    Interface Features for Camnex 2GE ONU WiFi Voice Mode

    InterfaceNumDescriptionUse
    ON/OFF1The power switchControl equipment power supply
    DC IN / DC OUT1110-270 V / 12V 1AConnecting a power Adapter
    LAN1~LAN24RJ45, 10/ 100/ 1000Base-TConnect the client device
    VOICE PORTRJ11Supported
    PON 口1SC/PCSingle-mode optical fiber uplink port
    RST1Restore factory Settings and reset
    WPS1
    WLAN1Wifi switch
    InterfaceItemDescription
    PONOptical interfaceSC/PC and APC are optional
    Data transmission rateUP:1.25Gb/s；DOWN:2.5Gb/s
    Transmission distance0~20km
    Transmission wavelengthreceive：1490nm
    send：1310nm
    The sensitivity≤ -27dBm
    Output optical power-1dBm~+4dBm
    Rx Overload-8dBm
    UNIRJ45 interfaceRJ45,10/100/1000Base-Tadaptive interface
    Transmission distance100m (Max)
    ManagementSupports local and remote management using the web
    WIFI2.4G/5G2T2R, The antenna：5DBI，Supports 802.11a/b/g/n/ac wireless standards

    Physical Specifications for Camnex 2GE ONU WiFi Voice Mode

    ItemDescription
    POWER12VDC, 1A
    power dissipation<10W
    Storage temperature-40℃～70℃
    Storage Humidity10%～85%
    Work temperature-10℃～65℃
    Work Humidity5%～95%
    CPURTL9607C
    FLASHNAND FLASH:128M
    RAM256M
    Optical drive chipGN25L95

    LED Specifications for Camnex 2GE ONU WiFi Voice Mode

    ItemStateColourDescription
    POWERONGreenNormal power supply
    OFFThe power supply is abnormal
    PONONGreenSuccessful registration
    flashingEstablishing a connection
    OFFOptical connection failure
    LOSONRedNo optical signal
    flashingIn diagnostic mode
    OFFNormal mode
    LAN1~LAN2ONGreenNormal mode
    flashingData transfer in progress
    OFFNot working or is down
    WIFIONGreenWifi is working properly
    flashingData transfer in progress
    OFFWifi is not working or is down
    WPSONGreenEnable
    flashingConnecting
    OFFDisable
