CAMNEX INNOVATIONS PRIVATE LIMITED

CX-IP1144D1S-PIFL

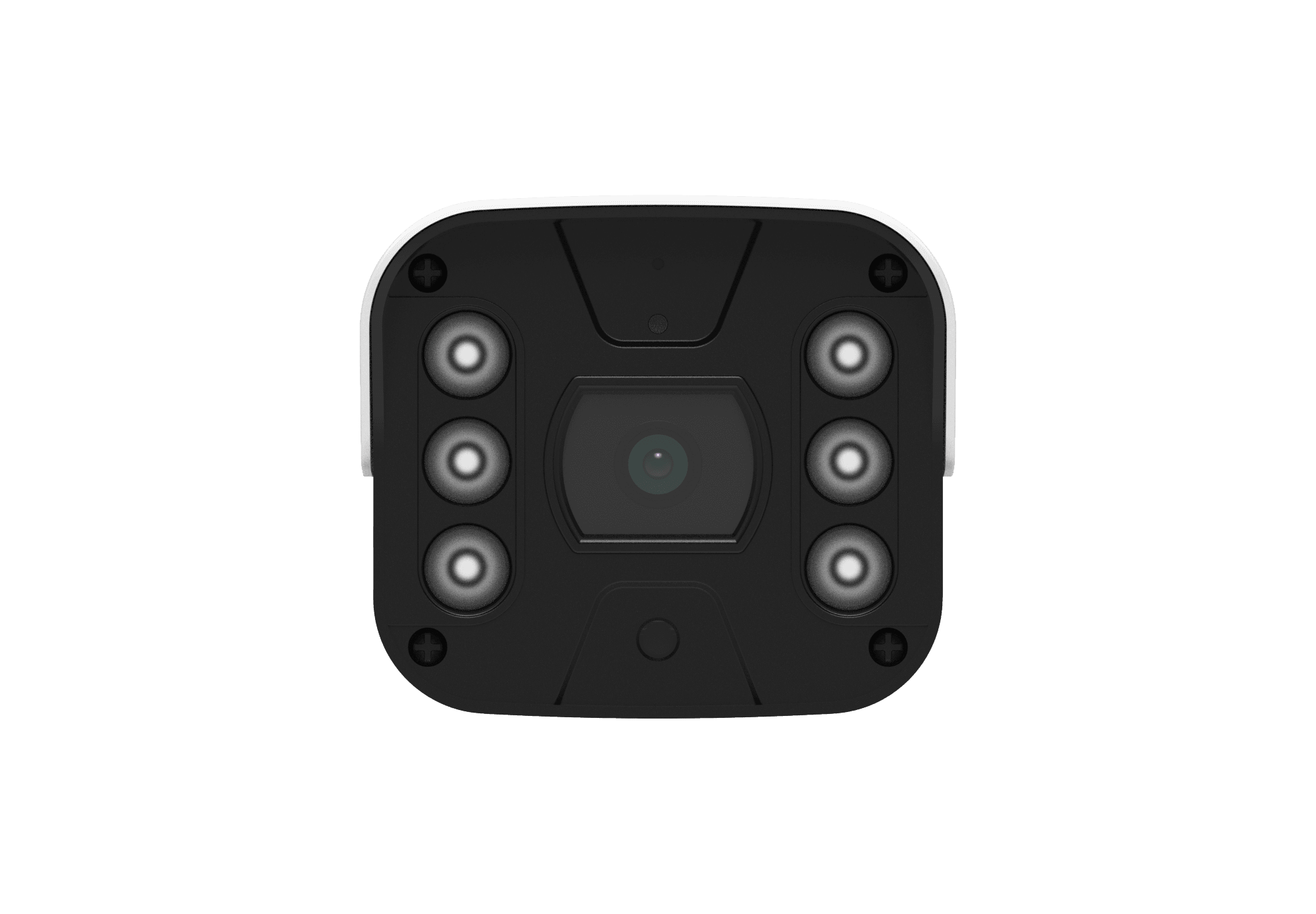

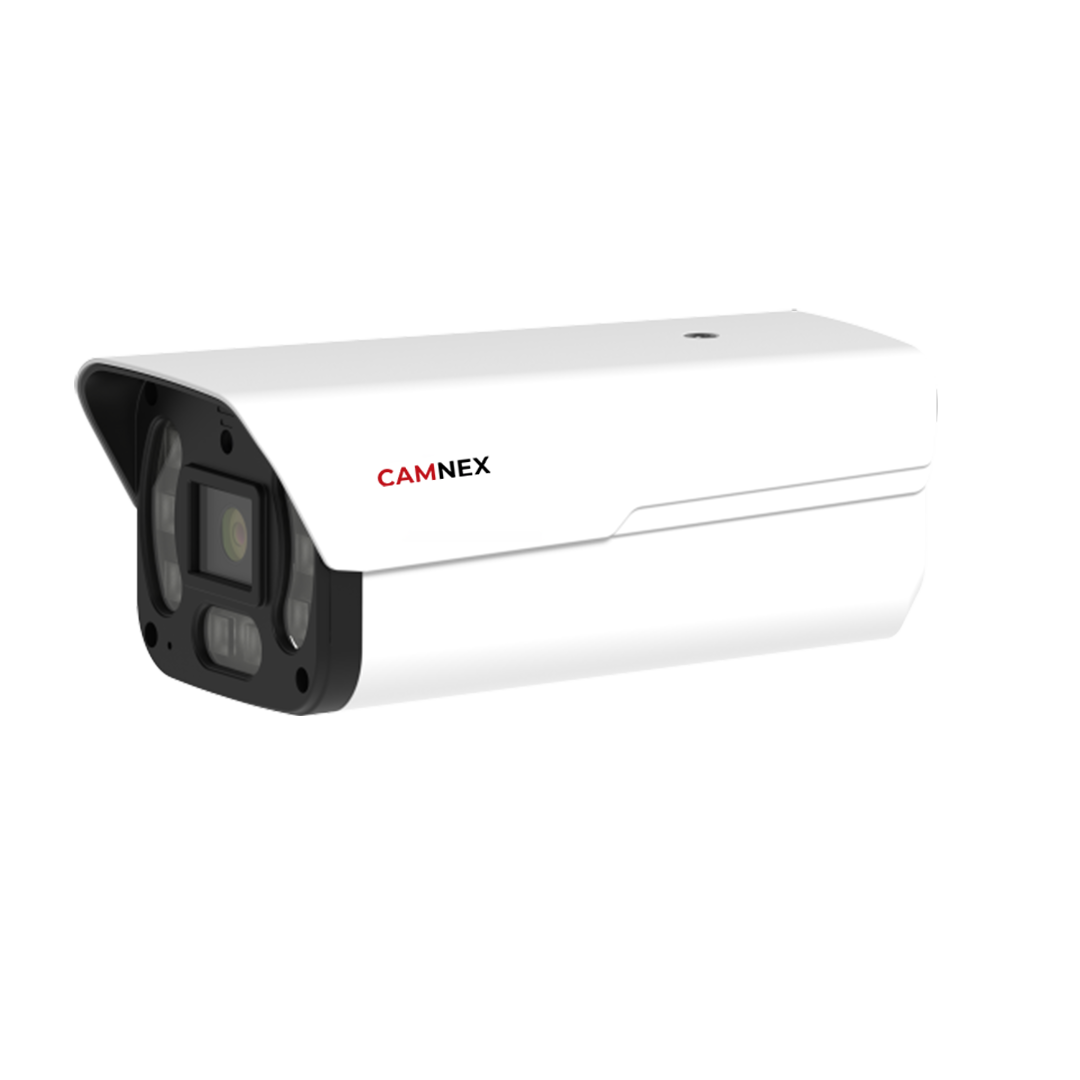

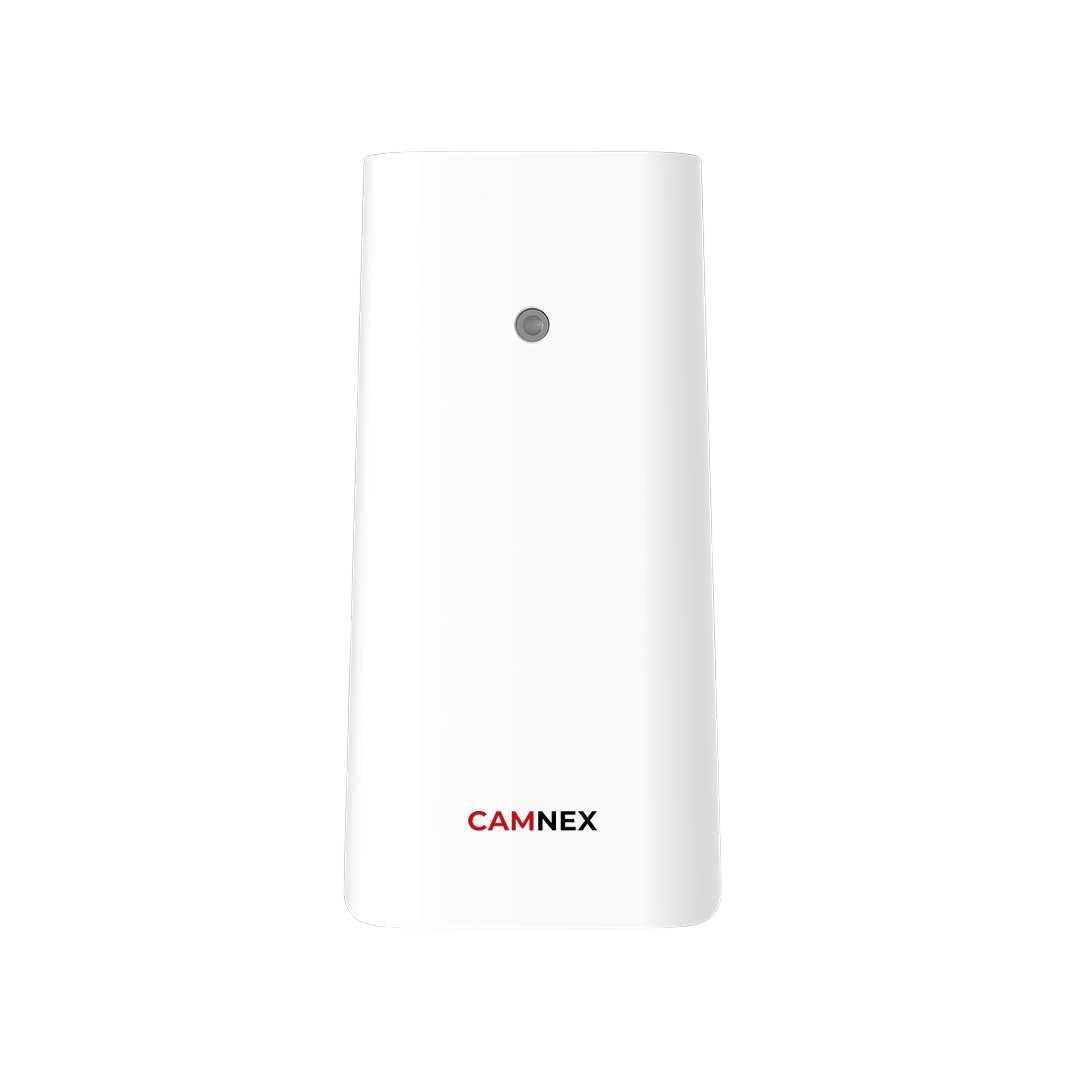

Camnex 4MP Bullet Camera ( IR + COLOR)

Key Features:-

  • 1/3″ Progressive Scan CMOS
  • 2560 × 1440p
  • Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
  • Up to 40 m IR Range
  • 4mm Fixed Lens
  • POE (Power over Ethernet)
  • Inbuilt Mic and Speaker
  • IP67 Protection rating
  • Up to 256GB SD card support
  • H.265 Video compression

Here are the key features of the Camnex 4MP Bullet Camera:

Image Sensor and Resolution

  • Featuring a 1/3″ Progressive Scan CMOS sensor, this camera provides sharp imaging.
  • Additionally, it supports a high resolution of 2560 × 1440p.

Low-Light Performance

  • For low-light conditions, it offers color imaging at just 0.001 Lux @(F2.0, AGC ON), and in complete darkness, it functions with 0 Lux thanks to the white light.
  • Moreover, it includes an IR range that extends up to 40 meters, enhancing visibility in dark settings.

Lens and Power Options

  • Equipped with a 4mm Fixed Lens, it provides clear, fixed focal imaging.
  • Furthermore, it supports POE (Power over Ethernet), simplifying installation.

Audio and Storage

  • With an inbuilt mic and speaker, it enables two-way communication directly through the device.
  • Additionally, it supports up to 256GB of SD card storage, which allows for extensive video recording.

Protection and Video Compression

  • Rated with IP67 protection, it is highly resistant to dust and water, making it suitable for outdoor use.
  • Lastly, it utilizes H.265 video compression, optimizing storage without compromising quality.

Technical Specification of FIXED LENS CAMNEX 4MP BULLET CAMERA WITH WHITE SUPPLEMENT LIGHT FOR 24X7 COLOR IMAGE

Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.001 Lux @(F2.0, AGC ON), 0 Lux with white light
Shutter Speed1/3 s to 1/100, 000 s
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV4 mm, horizontal FOV 75.2°, vertical FOV 40.8°, diagonal FOV 88.3°
Lens MountM12
FocusFixed
ApertureF2.0
Illuminator
Smart Supplement White LightYes
IR Rangeup to 40 m
Supplement Light RangeUp to 30 m
Video
Main Stream25 fps (2560 × 1440, 1920 × 1080)
Sub-Stream25 fps (640 × 360)
Video CompressionH.265
Video Bit Rate32 Kbps to 8 Mbps
Audio
Audio CompressionG. 711a/AAC
Audio Bit Rate64 Kbps (G.711alaw)
Audio Sampling Rate8 kHz
Environment Noise FilteringYes
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, 802.1X, IPv6, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 5 channels
APIOpen Network Video Interface, ISAPI
Web BrowserChrome, Firefox, Edge. All latest version
Image SettingsBrightness, Sharpness, color, contrast, saturation, 3D noise
reduction, exposure compensation, red gain, blue gain, adjustable
by client software or web browser.
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)Yes
Image EnhancementBLC, 3D DNR
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Built-in MicrophoneYes
Built-in SpeakerYes
Hardware ResetYes
Event
Basic EventHuman shape detection, motion detection, sound detection
Smart EventAlert alarm (alert area, alert period setting)
LinkageUpload to memory card,Cloud services, notify surveillance center,
trigger recording, trigger capture
General
Storage Conditions-30 °C to 55 °C (-22 °F to 131 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 55 °C (-22 °F to 131 °F). Humidity: 95% or less (non-condensing)
General FunctionVoice intercom, video recording, video playback, photo album, sleep
mode, watermark, cloud service, device sharing, system messaging
PowerPoE: 802.3af, Class 3, 48V, 0.3 A, max. 14.4W, 12V DC 2A
ProtectionIP67
